Panther DR13-Mx

full-rugged customizable Panel-PC

Panther DR13-Mx

rugged 10" to 19" panel PC

The Panther DR13 tablet PC is characterised by an exceptional customisation option and enormous robustness. The variety of different modules and possible interfaces with industrial or military connectors is enormous, as proven by countless installations in protected and armoured vehicles. In addition, the Panther series offers the same IP65 protection concept and IT platform as the Rocky Laptop, so you can rely on mature technology. The open product architecture of the Panther also allows modular combination with the roda displays, so that individual panel PCs can be configured from standard components. This reduces development times and costs, e.g. for a panel PC with 10", 12", 15" or 19" to an economical level.

roda's panel PCs are designed on a project-specific basis using mature standard IT (COTS) products. roda combines the Panther DR13 with the COTS displays of the RD series in various diagonals, thereby reducing delivery and development times as well as development costs and spare parts stocking. The DR10-Mx is a panel PC that is particularly suitable for installation in vehicles and cabins with a high protection factor. Available variants are the DR13-M10, DR13-M12, DR13-M15 or DR13-M19.

Technical specification DR13 base

Chipset

  • Intel® Kaby Lake-U platform

CPU

  • Intel® Core™i7-7600U™, Kaby Lake, 2.8 GHz (3.9 GHz max. Turbo Frequency)

Graphics

  • Intel® HD Graphics 620

Memory

  • up to 32 GB DDR4 2133 MHz (1x SO-DIMM slot)

Storage

  • exchangeable 2.5”SATA HDD (500 GB Std.)
  • optional with SATA SSD (MLC or SLC)

Audio

  • HD audio
  • stereo speaker

Security

  • TPM2.0 module

Interfaces

  • 2x USB3.1 Gen.1 (1x fast charge)
  • 1x Gbit LAN (RJ45)
  • 1x serial (DB9)
  • 1x DC-In (MIL)
  • 1x docking connector
  • 1x ExpressCard/54
  • 1x SIM card slot
  • 1x SD card slot

Power supply

  • Li-ion battery, 10.8 V, 5800 mAh
  • internal vehicle adapter 12-32 VDC with surge protection
  • AC-adapter 90 W, 19 VDC, 3.4 A, 100~240 VAC, 50/60 Hz

Operating Systems

  • Windows 10

Certification

  • CE/FCC/DOE, WEEE, REACH, RoHS2.0
  • designed to meet IP54
  • deisgned to meet MIL-STD-810G
  • deisgned to meet MIL-STD-461G

Housing

  • rugged magnesium housing

with DR13-M10 front panel

Display

  • 10.4“ XGA (1024×768)
  • sunlight-readable LCD
    LED backlight
    resistive touch screen

Colour

  • NATO olive RAL 6031 HR

Dimensions

  • 286 x 235 x 60 mm

Weight

  • approx. 3.0 kg

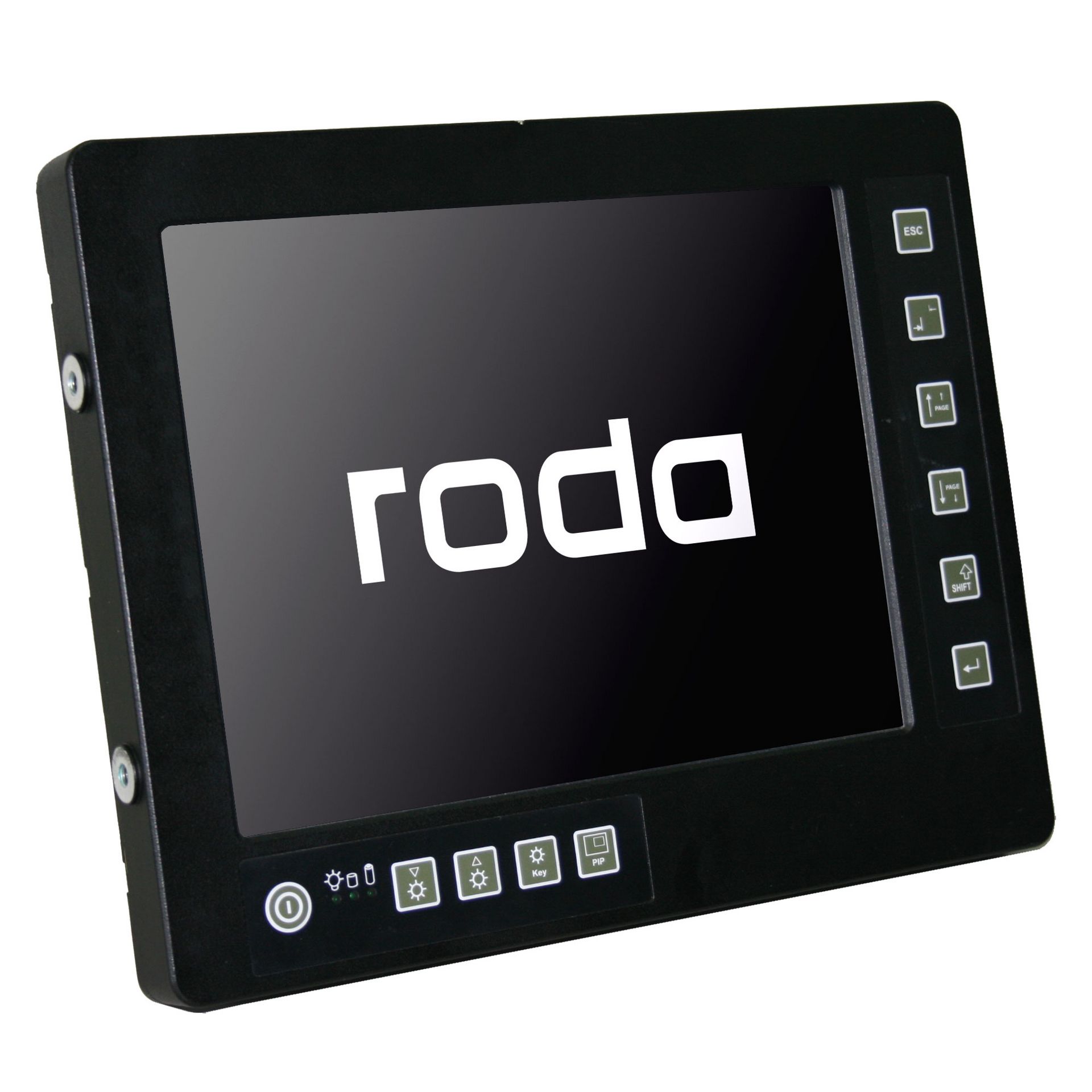

with DR13-M12 front panel

Display

  • 12.1“ XGA (1024×768)
  • Glass touch screen with pen

Colour

  • black RAL 9005

Dimensions

  • 334 x 260 x 82 mm

Weight

  • approx. 4 kg

with DR13-M15 front panel

Display

  • 15“ XGA (1024×768)
  • sunlight-readable LCD
    LED backlight
    resistive touch screen

Colour

  • NATO olive RAL 6031 HR

Dimensions

  • 351 x 300 x 72,2 mm

Weight

  • 5.3 kg

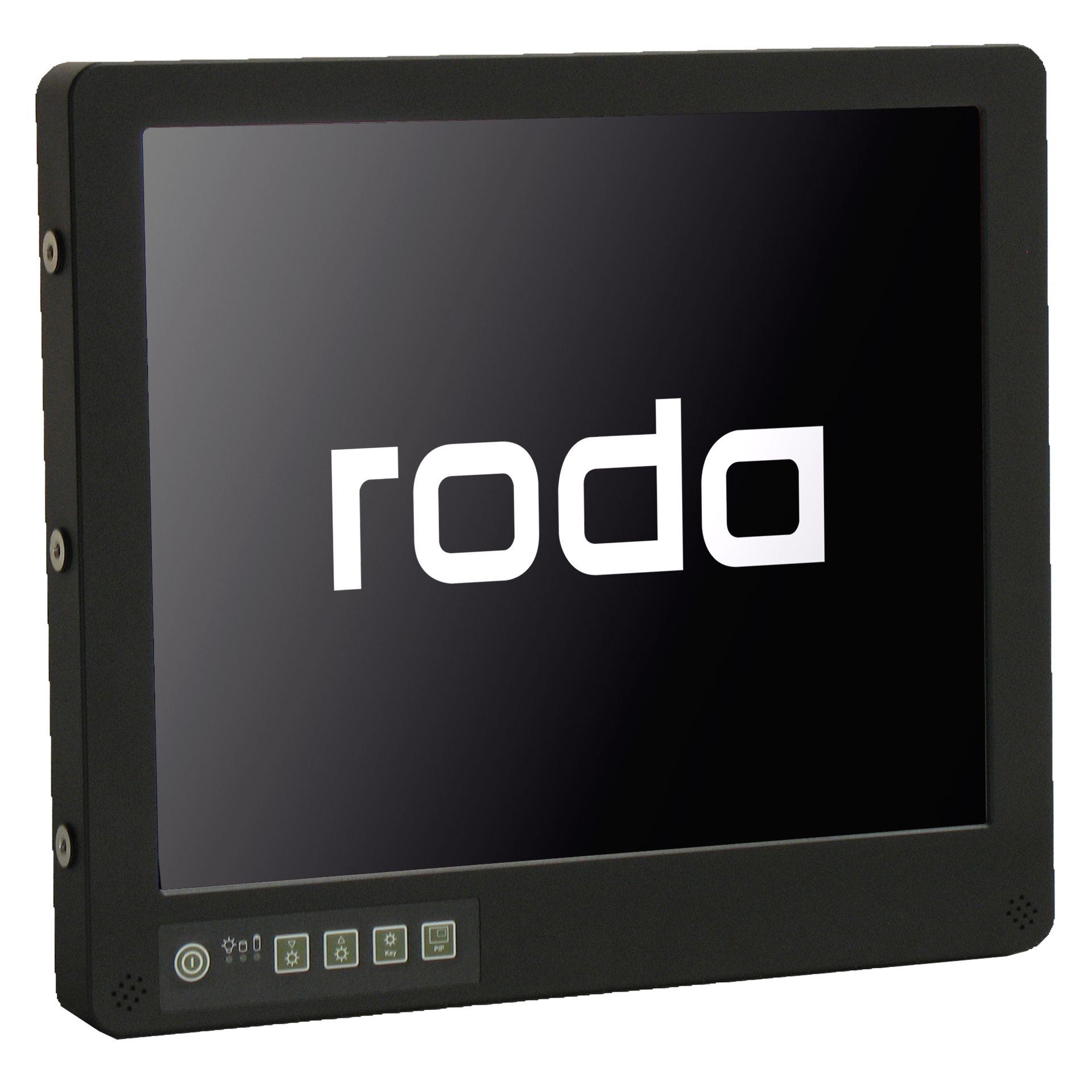

with DR13-M19 front panel

Display

  • 19“ SXGA+ (1280×1024)
  • Glass touch screen with pen

Colour

  • black RAL 9005

Dimensions

  • 444 x 385 x 94 mm

Weight

  • < 10 kg
