Panther DS13

full-rugged 10" tablet
Panther DS13

full-rugged 10" tablet

Panther DS13

Міцний 10“ планшет-ПК

Дотримуючись тенденції легких планшетних ПК, Panther DS13 поєднує високу мобільність серії Panther з тонкою конструкцією серії Lizard®. Потужний процесор Intel® Core ™ i7 забезпечує надзвичайну продуктивність. Пристрій має сертифікати IP65 та MIL-STD810, які витримують навіть найсуворіші умови навколишнього середовища. Як серія Lizard®, Panther DS13 також пропонує варіанти роз'ємів, які відповідають вимогам стандарту MIL.

Технічні характеристики


  • LCD 10.1“ WUXGA (1920x1200) 16:10
  • LED backlight
  • sunlight readable typ. 800 cd/m²
  • resistive multi touch screen


  • Intel® Kaby Lake-Y platform


  • Intel® 7th Gen. Intel® Core™i7-7Y75 (4 MB Cache, up to 3.6 GHz)


  • Intel® HD Graphics 615


  • 16 GB LPDDR3, 1866 MHz


  • mSATA 2280 SSD 128 - 512 GB I-Temp


  • HD Audio and mono speakers


  • power button
  • function keys

Power supply

  • 12~32 VDC with BVA & surge protector
  • Li-ion battery 11.1 V, 4560 mAh
  • AC-adapter 90 W, 19 VDC, 3.4 A, 100~240 VAC, 50/60 Hz


  • light sensor


  • Kensington cable lock slot
  • password security (supervisor password, user password)
  • TPM2.0 module

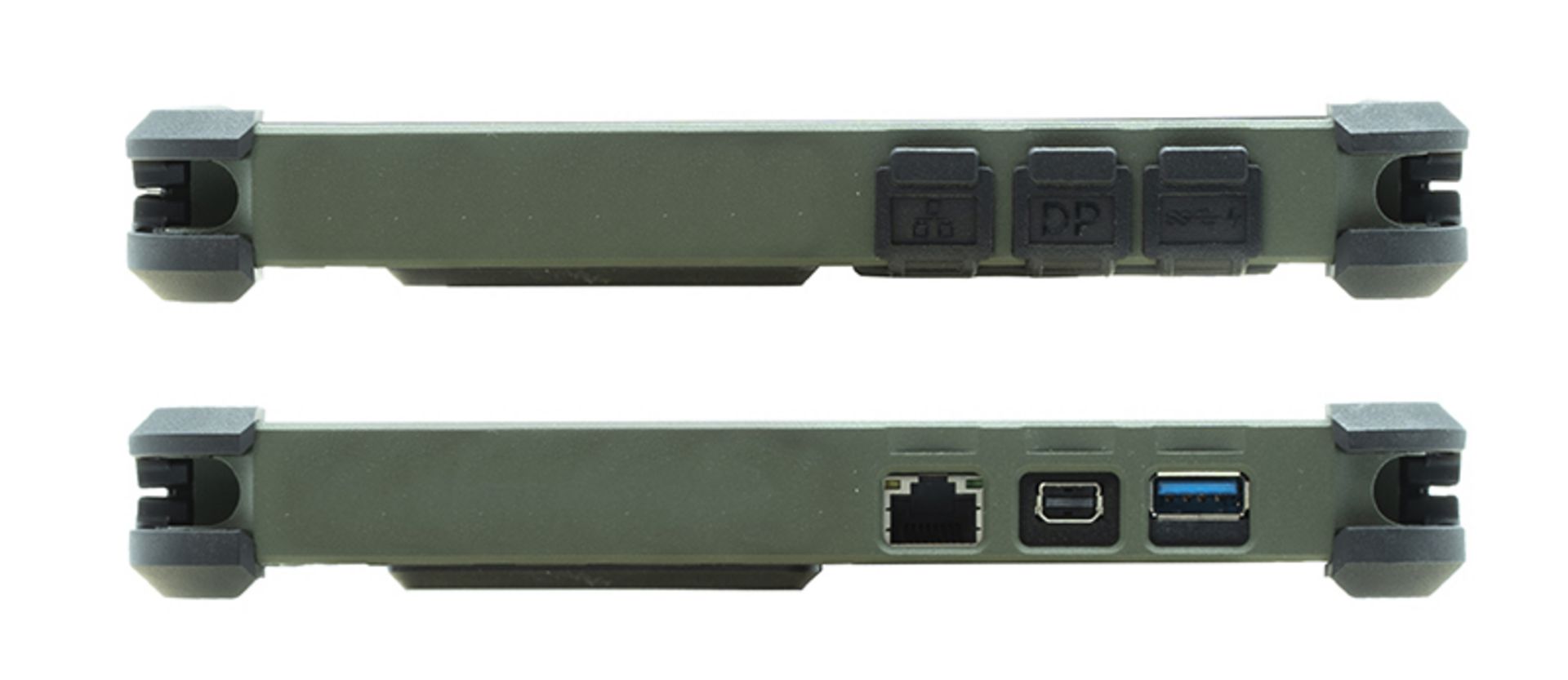

Interfaces (left side)

  • Variant 1: 2x USB 3.1, 1x mini Displayport
  • Variant 2: 1x GLAN RJ45, 1x mini Displayport, 1x USB3.1

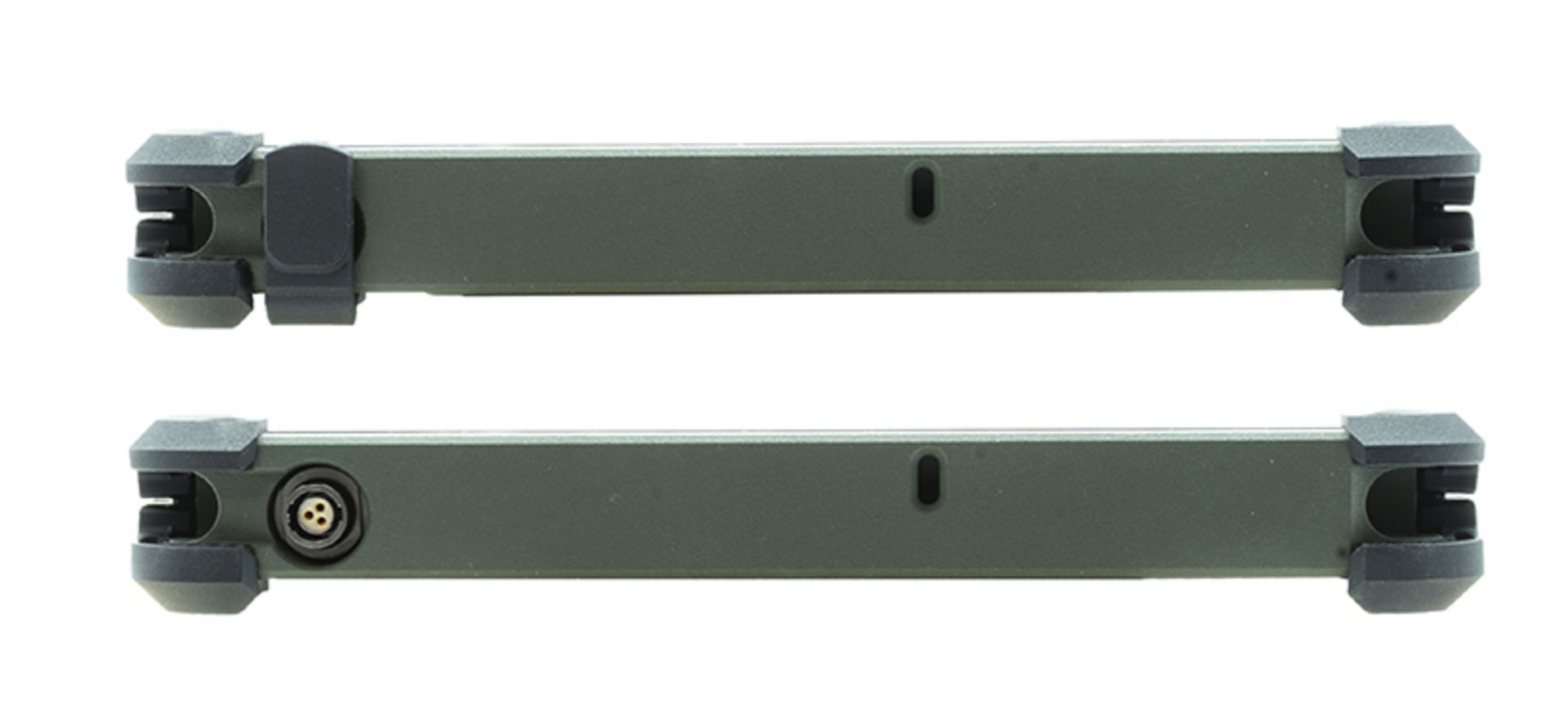

Interfaces (right side)

  • 1x DC-In (2-Pin)

Interfaces (top side)

  • micro SD card slot

Interfaces (bottom side)

  • 1x DockLite connector
  • 2x ext. antenna signal

Operating Systems

  • Windows 10 Pro


  • full IP65 (with opened I/O-port covers)
  • MIL-STD-810G
  • MIL-STD-461G


  • milled anti-corrosive aluminum


  • military green (NATO olive / RAL6031HR)
  • black


  • 286 x 193 x 27 mm (L x D x H)


  • 1.39 kg with battery (ca. 0.3 kg)

Додаткові опції

  • capacitive multi touch screen (typ. 1000 cd/m²)
  • WiFi module (Intel® Wireless-AC 9260)
    • WLAN 802.11 a/b/g/n/ac
    • Bluetooth 5.0
  • GPS module u-blox Neo-M8N (GPS/GLONASS)
  • additional sensors: AMG sensor module
    • accelerometer, magnetometer, gyroscope
  • embedded digital mic
  • barcode reader (trade-off with micro SD card slot)
  • COM port (trade-off with micro SD card slot)
  • wide temperature range for -30°C (heater)
  • night vision mode (trade-off with invisible mode)
  • invisible mode (trade-off with night vision mode)
  • MIL Fischer I/O-ports (max. 4 MIL-interfaces possible)
    • up to 2x MIL COM [not switchable by BIOS] (2x RS232 or 1x RS232 + 1xRS422)
    • 1x MIL Audio (audio or headset)
    • 1x MIL VGA / RGB interface for external display
    • 1x MIL USB2.0 interface
    • 1x MIL Gigabit LAN interface
  • MIL-STD-461G certification
    • Ground Army (Navy mobile & Army)

Easy and fast extensible

By means of the Docklite DS for Panther DS13, an easy and fast extension of a large range of interfaces is possible.
With this additional option of the docking solution, the basic variant with commercially available connectors can be used or, at customer's request, own solutions can be realized, optionally also with military round connectors.

Flexible modifications

The standard version of the Panther DE13 and DS13 can be extended at any time with Fischer military round connectors. A wide range of interfaces is available as standard option and can be integrated into the device subsequently. Customized configurated connections can be implemented at any time.

Retain full control

Specifically designed for the Panther DS13, the HUD Controller expands the 10" device into a complete controller for drones and unmanned vehicles. The Panther is simply connected to the controller via docking solution, without the need for any special modifications. This way, even if the tablet generation changes, the device can be easily swapped at any time without replacing the controller.
