Panther DK13

full-rugged customizable 12" tablet

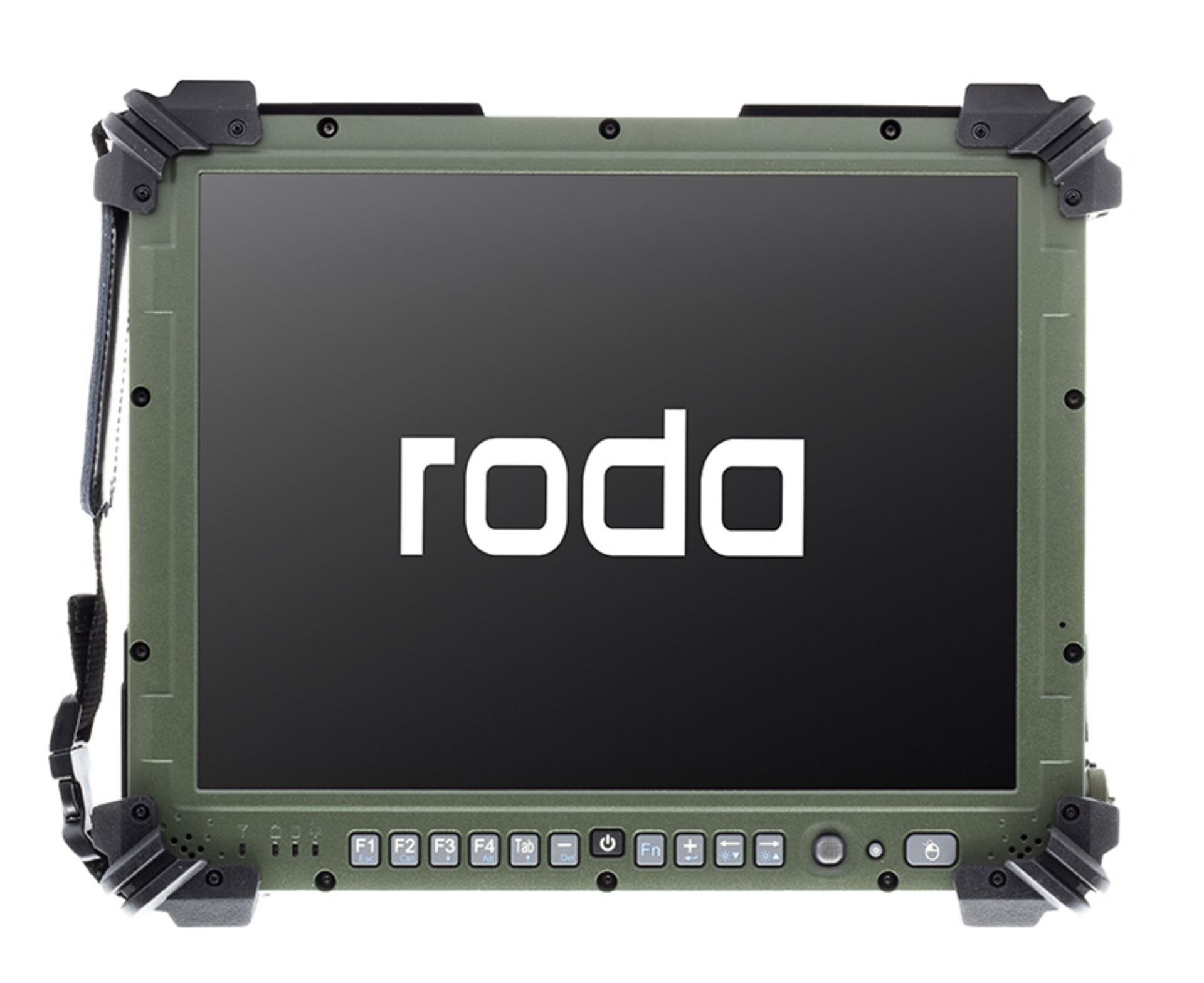

Panther DK13

rugged 12" tablet PC

The 12" tablet PC Panther DK13 is characterised by its extraordinary opportunities for customisation and enormous ruggedness. The variety of available modules and possible interfaces with industrial or military plugs is enormous, which is proven by countless installations in protected and armoured vehicles.

In addition, the Panther series offers the same IP65 protection concept and IT platform as the Rocky laptop, so you can rely on sophisticated technology.

Technical specification

Display

  • 12.1“ XGA (1024×768)
  • sunlight readable LCD
  • LED backlight
  • resistive touch screen
  • optical bonding

Chipset

  • Intel® Kaby Lake-U platform

CPU

  • Intel® Core™i7-7600U™, Kaby Lake, 2.8 GHz (3.9 GHz max. Turbo Frequency)

Graphics

  • Intel® HD Graphics 620

Memory

  • up to 32 GB DDR4 2133 MHz (1x SO-DIMM slot)

Storage

  • exchangeable 2.5”SATA HDD (500 GB Std.)
  • >> optional with SATA SSD (MLC or SLC)

Audio

  • HD audio
  • stereo speaker

Keypad

  • ON/OFF
  • LCD brightness
  • standby
  • 6 free programmable funktion keys
  • trackpoint mouse device with left mouse button

Security

  • TPM2.0 module

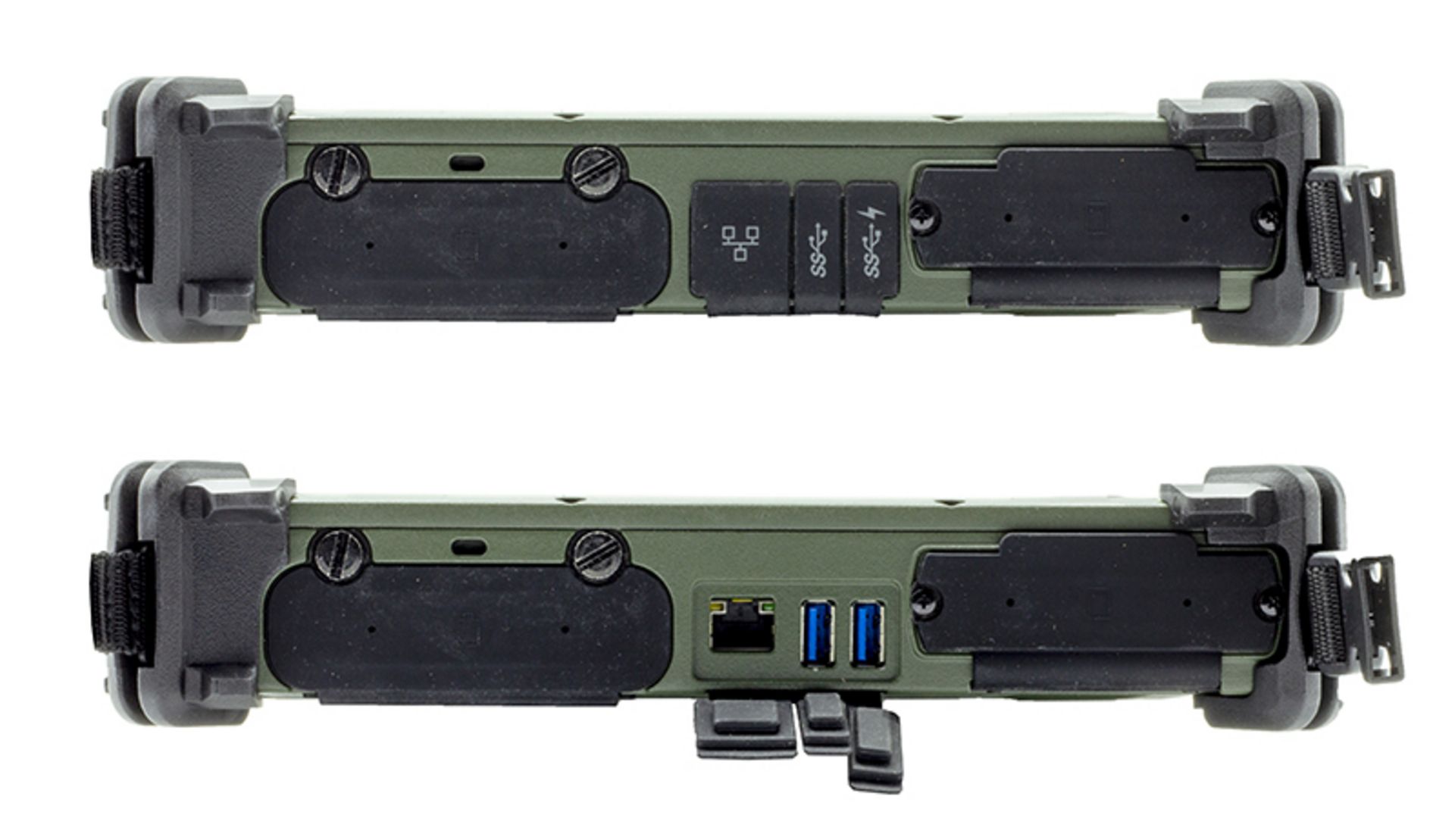

Interfaces

  • 2x USB3.1 Gen.1 (1x fast charge)
  • 1x Gbit LAN (RJ45)
  • 1x serial (DB9)
  • 1x DC-In (MIL)
  • 1x docking connector
  • 1x ExpressCard/54
  • 1x SIM card slot
  • 1x SD card slot

Power supply

  • Li-ion battery, 11.4 V, 8700 mAh
  • internal vehicle adapter 12-32 VDC with surge protection
  • AC-adapter 90 W, 19 VDC, 3.4 A, 100~240 VAC, 50/60 Hz

Operating System

  • Windows 10

Certification

  • CE/FCC/DOE, WEEE, REACH, RoHS2.0
  • IP65
  • MIL-STD-810G
  • MIL-STD-461G

Housing

  • rugged magnesium housing

Colour

  • military green (NATO olive / RAL6031HR)
  • black

Dimensions

  • 310 x 255 x 54 mm (L x D x H)

Weight

  • 2.5 kg

Options

  • WiFi module (Intel® Wireless-AC 9260)
    •    WLAN 802.11 a/b/g/n/ac
    •    Bluetooth 5.0
  • GPS module u-blox Neo-M8N (GPS/GLONASS)
  • 2nd GBit LAN 10/100/1000 MBit
  • fiber optic LAN 100/1000 MBit
  • display filter for night vision equipment
  • heater for -30°C operating
  • military round connectors for nearly all interfaceson request
  • BSI Zone 1 / SDIP 27 Level B
  • MIL-STD-461G certification
    • Ground Army (Navy mobile & Army)
