Революція в надійних мобільних серверах

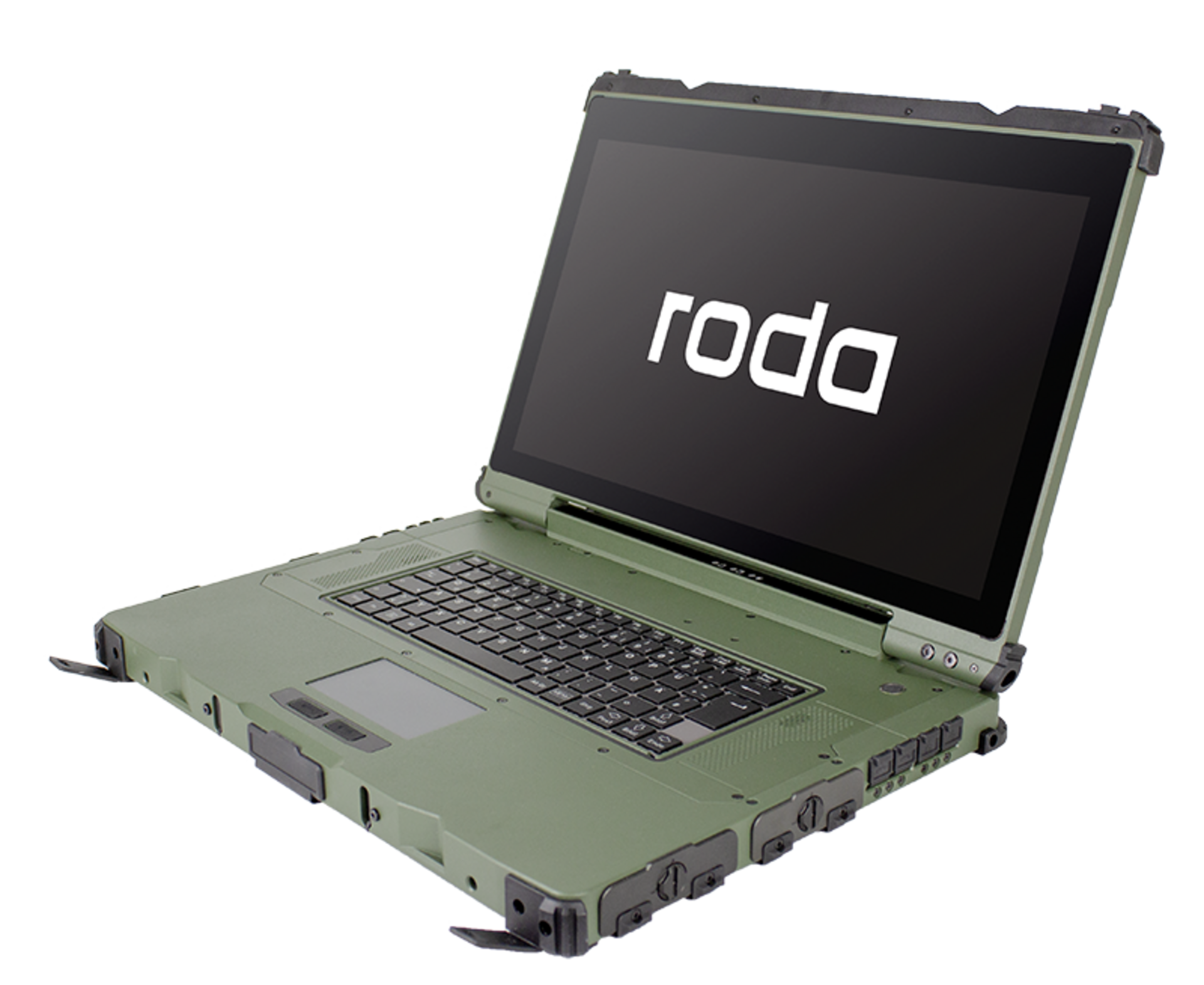

With the 17.3" display with maximum resolution Full HD (1920x1080) roda presents with the Lizard® RB14 a worldwide unique 17” laptop in the rugged IT defense sector. The Lizard® RB14 with its powerful platform is a responsive and highly reliable mobile server in an extremely compact laptop format. At present, there is no ruggedized notebook that combines this performance and functional diversity in an extremely compact design that offers in addition a wide range of options for customer-specific adaptations and solutions. Different MIL-cards and special interface cards can be integrated via the reserved interfaces.

The outstanding performance features such as the Intel® Xeon® processor of the E-Series, a DDR4 memory of up to 64GB and four SSD hard disks that can be configured in different RAID settings provide ideal IT agility, flexibility and scalability.

A dedicated graphics card nVIDIA® Geforce® GTX1050 (4GB) is optionally available, with which, for example, georeferenced applications requiring intensive computing, such as highly dynamic position displays of command and control systems, can be displayed virtually in real time.

The ergonomic size of the display can be used especially for displaying situation images, maps and satellites in the battlefield, IETD (Interactive Technical Documentation) as well as in the area of training and simulation. With its 17” display an external display can often be replaced.

As an additional option, rodas’ own designed AC150 power supply can be equipped with MIL-STD 810, MIL-STD 461 and IP65 protection to withstand operations in extreme environments.

Технічні характеристики

Display

  • LCD 17.3“ Full HD (1920x1080)
  • LED backlight
  • sunlight readable LCD 1000 cd/m²

Platform

  • Intel® Coffee Lake platform

Chipset

  • Intel® CM246 chipset

CPU

  • Intel® Xeon® processor E-2176M 2.7 GHz, 12MB Intel® Smart Cache, up to 4.4 GHz

Graphics

  • Intel® UHD Graphics P630

Memory

  • up to 64GB DDR4-2400 (ECC/nonECC) (4x SO-DIMM slot)

Storage/ ODD

  • SSD up to 1TB per drive
  • Variant 1 (Standard): up to 4x 2.5” SATA3 SSD drives
  • Variant 2: up to 2x 2.5” SATA3 SSD drives + DVD-RW drive

Audio

  • HD audio and stereo speaker

Touchpad

  • resistive (single touch)

Power supply

  •  Li-ion battery, 10.8 V, 6900 mAh
    • Variant 1: 2x battery w/o DVD drive
    • Variant 2: 1x battery with DVD drive
  • AC-adapter 200 W, 19 VDC, 10.5 A, 100~240 VAC, 50/60 Hz

Interfaces (left side)

  • 2x USB 3.1 Gen.2 (1x 1.5 A fast charge)
  • 3x Audio 3.5mm jack

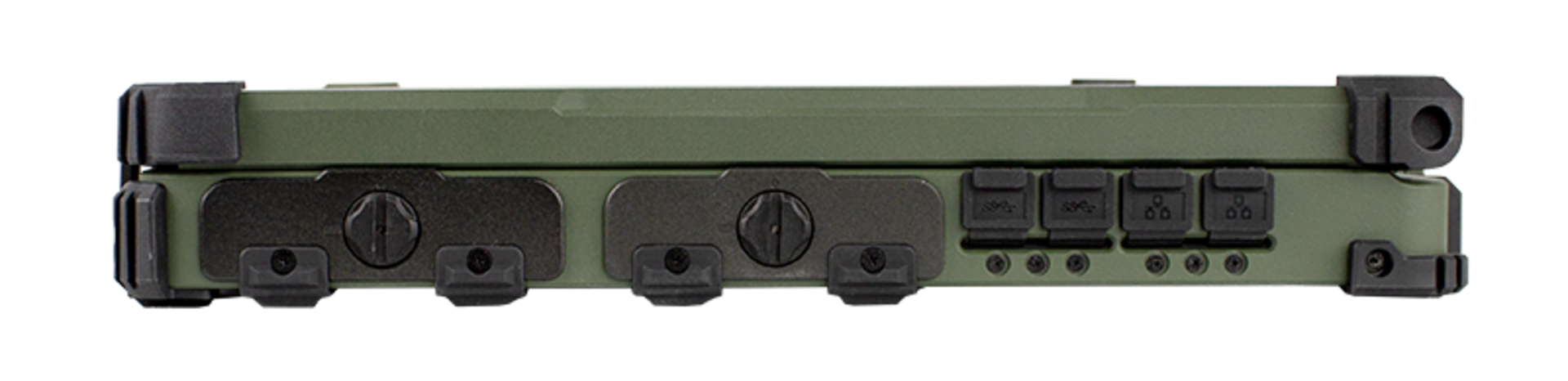

Interfaces (right side)

  • 2x USB3.1
  • 1x GBit LAN

Interfaces (rear side)

  • 1x MIL DC-In
  • 1x VGA
  • 1x Displayport,
  • 2x serial DB9 (COM 1-2)

Interfaces (bottom side)

  • 1x multi bay docking port
  • >> docking solution on request

Security

  • Kensington lock
  • TPM 2.0 module

Operating System

  • Windows 10
  • Windows Server 2016

Certification

  • CE/FCC, WEEE, REACH, RoHS,
  • full IP65 (with opened I/O-port covers),
  • MIL-STD-810H
  • MIL-STD-461G

Housing

  • milled anti-corrosive aluminum

Colour

  • military green (NATO olive / RAL6031HR)
  • black

Dimensions

  • 392 x 302 x 42 mm (L x D x H)

Weight

  • ca. 6.8 kg

Додаткові опції

  • touch screen (capacitive multi touch or resistive single touch)
  • dedicated nVIDIA® Geforce® GTX1050 graphics add-on card (4GB)
  • support for nigth vision goggles
  • I-Temp SLC SSD (-45°C to + 85°C)
  • WiFi module (Intel® Wireless-AC 9260)
    • WLAN 802.11 a/b/g/n/ac
    • Bluetooth 5.0
  • GPS module u-blox Neo-M8N (GPS/GLONASS)
  • 2nd GLAN port (RJ45, right side)
  • 2 additional serial DB9 ports (COM 3-4)
  • embedded digital microphone
  • built-in vehicle adapter 12-32 VDC
  • wide temperature range -30°C to +60°C
  • smart card reader class 1
  • integrated RAID storage 0, 1, 5, 10
  • MIL grade connectors on request
    • EMI modifications:
      (only possible with resistive touch pad and touch screen!)
      • TEMPEST SDIP 27 Level B (ER)
      • MIL-STD-461G certification
        Ground Army (Navy mobile & Army)

Increased storage and longer battery time

The Lizard® server is equipped with 2x Li-Ion batteries with 6900 mAh and 4x 2.5" SSD slots. Due to the quick-release flaps on the side, batteries and hard drives can be replaced at any time without tools. The two separated batteries allow a hot swap, whilst at least one battery is still remaining in the system.
The system comes with built-in hardware RAID functionality, allowing the 4x SSD drives to be used as a RAID 0/1/5/10 array.

Optional with optical drive

Alternatively, the Lizard® servers are also available with an integrated optical drive. Here, the 2nd battery and 2 of the 4 SSD slots are omitted and replaced by a DVD±RW drive. The drive is covered by a flap to meet IP65 when closed. Thus, it is possible to cover the need for an internal optical drive as well.

Tempest on the highest level

The Lizard® RW14 is certified according to BSI Zone 1, SDIP 27 Level B (ER) – as most of the roda devices.
With the Lizard® RW14 a national SDIP 27 Level A certification is possible.
In order to meet the requirements, special interfaces are required on the devices so that only special peripherals approved with the system can be used.

Network at highest speed

The Lizard® servers are optionally available with standard Ethernet interfaces of up to 10 GBit. The Ethernet interfaces are also available as optical solutions which can be led out via different variants from standard LC up to rugged HMA/HMC connectors at the device.

Customized for your mission

As well as the approved devices of the Rocky or Panther series, the Lizard® series is designed to enable customer-specific adaptions. The devices already offer plenty of space on the back for almost all types of military connectors. If more ports are needed, the housing can be customized and the standard ports can be replaced by military round connectors.
This gives us the possibility to realize and deliver almost any modification required by the customer, tailored to its individual request. The roda Lizard® series has served many customers for years showing the benefit of form, fit and function.

More speed, extended storage

Optionally, two of the existing SATA3 SSDs slots can be adapted for use with a U.2 SSD in the 2.5" form factor. This allows a significantly higher data rate to be achieved and the total storage to be expanded up to 18 TB.

Аксесуари


Монтажна пластина для бортового встановлення
ShockMount
Mountingplate with shock absorber
Порт-реплікатор DockUnder
для Lizard Model RW
Сумка для транспортування
Зовнішній DC адаптер
