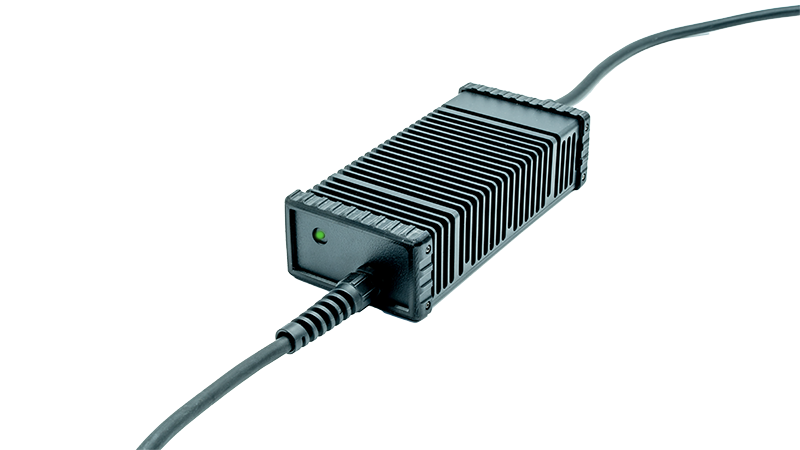

AC/DC блок живлення ACS150

IP65 AC адаптер для продуктивності до 150 Вт

All over the world, mobile IT equipment such as tablets and laptops are supplied with commercially available desktop power supplies that withstand much worse environmental conditions than the central IT equipment. With the AC adapter models ACS90 and ACS150, roda pushes open a door to a new dimension in the rugged world. Water- and sand-protected, shockproof, drop- and EMC-protected, the AC adapter can also be used at the temperatures designated for IT equipment.
Despite the aluminium housing, EMC filter boards and reinforced cable sheath, the full-rugged ACS150 is only 50 % heavier and approx. 25 % larger in volume than a commercially available power supply unit of the same performance class (comparison with the standard power supply unit roda Lizard® RW14 or RB14).

General

Input voltage

  • 100-240 VAC

Frequency

  • 50-60 Hz (100-240 VAC)
  • 400 Hz (110 VAC)

Input current

  • 1.60 A (115 VAC)
  • 0.80 A (230 VAC)

Output voltage

  • 19 VDC ± 5%

Output current

  • 7.90 A (19 VDC)

Output power

  • 150 W

Efficiency

  • ~ 88% (230 VAC)

Protection Class

  • I

Safety

  • Overvoltage proof
  • Overcurrent proof
  • Overload safe
  • Overheating protection
  • according EN62368-1

Interface (input)

  • Connector Schuko / BS1363 / NEMA
  • Cable length ca. 147 ± 5 cm

Interface (output)

  • Connector: 62GB-16F10-02SN
  • Cable length ca. 115 ± 5 cm

Compatibility

  • Lizard®: RW11, RW14/RB14
  • Serval: RD22-FHD, RD24-FHD

Dimensions [W×H×D]

  • 204 x 49 x 90 mm (without cable fitting)

Weight

  • approx. 1.50 kg

Protection class (IP-Rating)

  • IP65

Environmental specification

  • Designed to meet MIL-STD-810G
  • EMI

  • Designed to meet MIL-STD-461G

TEMPEST

  • Optional: Zone 1
  • Optional: ​​​​​​​​​​​​​​SDIP 27 Level A
  • Optional: ​​​​​​​​​​​​​​SDIP 27 Level B
  • Optional: ​​​​​​​-60 dB filter
